CDR serialization helpers. More...

#include "rclc/types.h"

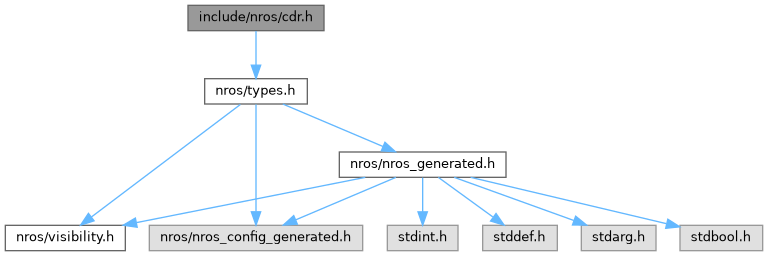

Include dependency graph for cdr.h:

This graph shows which files directly or indirectly include this file:

Functions
int32_t	rclc_cdr_align (const uint8_t *ptr, const uint8_t end, const uint8_t *origin, size_t alignment)
	Advance the cursor to the next `alignment` boundary of the CDR stream, consuming the writer's padding.

int64_t	rclc_cdr_begin_dheader (uint8_t *ptr, const uint8_t end, const uint8_t *origin)

int64_t	rclc_cdr_begin_dheader_read (const uint8_t *ptr, const uint8_t end, const uint8_t *origin)

int32_t	rclc_cdr_end_dheader (int64_t mark, uint8_t *ptr, const uint8_t end, const uint8_t *origin)

int32_t	rclc_cdr_end_dheader_read (int64_t scope, const uint8_t *ptr, const uint8_t end, const uint8_t *origin)

int32_t	rclc_cdr_read_bool (const uint8_t *ptr, const uint8_t end, const uint8_t origin, bool value)
	Read a boolean value from the buffer.

int32_t	rclc_cdr_read_f32 (const uint8_t *ptr, const uint8_t end, const uint8_t origin, float value)
	Read a f32 value from the buffer.

int32_t	rclc_cdr_read_f64 (const uint8_t *ptr, const uint8_t end, const uint8_t origin, double value)
	Read a f64 value from the buffer.

int32_t	rclc_cdr_read_i16 (const uint8_t *ptr, const uint8_t end, const uint8_t origin, int16_t value)
	Read an i16 value from the buffer.

int32_t	rclc_cdr_read_i32 (const uint8_t *ptr, const uint8_t end, const uint8_t origin, int32_t value)
	Read an i32 value from the buffer.

int32_t	rclc_cdr_read_i64 (const uint8_t *ptr, const uint8_t end, const uint8_t origin, int64_t value)
	Read an i64 value from the buffer.

int32_t	rclc_cdr_read_i8 (const uint8_t *ptr, const uint8_t end, const uint8_t origin, int8_t value)
	Read an i8 value from the buffer.

int32_t	rclc_cdr_read_string (const uint8_t *ptr, const uint8_t end, const uint8_t origin, char value, size_t max_len)
	Read a string from the buffer into a fixed-size buffer.

int32_t	rclc_cdr_read_u16 (const uint8_t *ptr, const uint8_t end, const uint8_t origin, uint16_t value)
	Read a u16 value from the buffer (with alignment).

int32_t	rclc_cdr_read_u32 (const uint8_t *ptr, const uint8_t end, const uint8_t origin, uint32_t value)
	Read a u32 value from the buffer (with alignment).

int32_t	rclc_cdr_read_u64 (const uint8_t *ptr, const uint8_t end, const uint8_t origin, uint64_t value)
	Read a u64 value from the buffer (with alignment).

int32_t	rclc_cdr_read_u8 (const uint8_t *ptr, const uint8_t end, const uint8_t origin, uint8_t value)
	Read a u8 value from the buffer.

static int32_t	rclc_cdr_seq_byte_len (uint32_t count, size_t elem_size, size_t limit, size_t *out)
	The byte length of `count` wire elements of `elem_size` bytes, or failure if the product does not fit below `limit`.

int32_t	rclc_cdr_write_bool (uint8_t *ptr, const uint8_t end, const uint8_t *origin, bool value)

int32_t	rclc_cdr_write_encaps_header (uint8_t *ptr, const uint8_t end)
	Write a boolean value to the buffer.

int32_t	rclc_cdr_write_f32 (uint8_t *ptr, const uint8_t end, const uint8_t *origin, float value)
	Write a f32 value to the buffer (with alignment).

int32_t	rclc_cdr_write_f64 (uint8_t *ptr, const uint8_t end, const uint8_t *origin, double value)
	Write a f64 value to the buffer (with alignment).

int32_t	rclc_cdr_write_i16 (uint8_t *ptr, const uint8_t end, const uint8_t *origin, int16_t value)
	Write an i16 value to the buffer.

int32_t	rclc_cdr_write_i32 (uint8_t *ptr, const uint8_t end, const uint8_t *origin, int32_t value)
	Write an i32 value to the buffer.

int32_t	rclc_cdr_write_i64 (uint8_t *ptr, const uint8_t end, const uint8_t *origin, int64_t value)
	Write an i64 value to the buffer.

int32_t	rclc_cdr_write_i8 (uint8_t *ptr, const uint8_t end, const uint8_t *origin, int8_t value)
	Write an i8 value to the buffer.

int32_t	rclc_cdr_write_string (uint8_t *ptr, const uint8_t end, const uint8_t origin, const char value)
	Write a string to the buffer (length-prefixed).

int32_t	rclc_cdr_write_string_n (uint8_t *ptr, const uint8_t end, const uint8_t origin, const char data, size_t len)
	Write a string from a pointer+length pair (not null-terminated).

int32_t	rclc_cdr_write_u16 (uint8_t *ptr, const uint8_t end, const uint8_t *origin, uint16_t value)
	Write a u16 value to the buffer (with alignment).

int32_t	rclc_cdr_write_u32 (uint8_t *ptr, const uint8_t end, const uint8_t *origin, uint32_t value)
	Write a u32 value to the buffer (with alignment).

int32_t	rclc_cdr_write_u64 (uint8_t *ptr, const uint8_t end, const uint8_t *origin, uint64_t value)
	Write a u64 value to the buffer (with alignment).

int32_t	rclc_cdr_write_u8 (uint8_t *ptr, const uint8_t end, const uint8_t *origin, uint8_t value)
	Write a u8 value to the buffer.

Detailed Description

CDR serialization helpers.

Low-level read/write functions for CDR (Common Data Representation) encoding. These are used by generated message code and can also be called directly for manual serialization.

All functions advance the ptr cursor. They return 0 on success or a negative value if the buffer is too small.

Function Documentation

◆ rclc_cdr_align()

int32_t rclc_cdr_align	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		size_t	alignment
	)

Advance the cursor to the next alignment boundary of the CDR stream, consuming the writer's padding.

Alignment is measured from origin (the stream origin after the encapsulation header), never from the buffer pointer: a float64[] whose 4-byte count lands at stream offset 4 has its first element at offset 8, whatever address the buffer happens to sit at. This is the Rust reader's CdrReader::align behind the C ABI, so it carries the same edition rule (XCDR2 caps 8-byte primitives at 4) and the header-only borrow readers in <rclc/detail/view.h> cannot drift from it (issue 1148).

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
alignment	Boundary in bytes (1, 2, 4 or 8).

Returns: 0 on success, negative if alignment is 0 or the padding would run past end.

◆ rclc_cdr_begin_dheader()

int64_t rclc_cdr_begin_dheader	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin
	)

◆ rclc_cdr_begin_dheader_read()

int64_t rclc_cdr_begin_dheader_read	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin
	)

◆ rclc_cdr_end_dheader()

int32_t rclc_cdr_end_dheader	(	int64_t	mark,
		uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin
	)

◆ rclc_cdr_end_dheader_read()

int32_t rclc_cdr_end_dheader_read	(	int64_t	scope,
		const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin
	)

◆ rclc_cdr_read_bool()

int32_t rclc_cdr_read_bool	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		bool *	value
	)

Read a boolean value from the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_read_f32()

int32_t rclc_cdr_read_f32	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		float *	value
	)

Read a f32 value from the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_read_f64()

int32_t rclc_cdr_read_f64	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		double *	value
	)

Read a f64 value from the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_read_i16()

int32_t rclc_cdr_read_i16	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		int16_t *	value
	)

Read an i16 value from the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_read_i32()

int32_t rclc_cdr_read_i32	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		int32_t *	value
	)

Read an i32 value from the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_read_i64()

int32_t rclc_cdr_read_i64	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		int64_t *	value
	)

Read an i64 value from the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_read_i8()

int32_t rclc_cdr_read_i8	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		int8_t *	value
	)

Read an i8 value from the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_read_string()

int32_t rclc_cdr_read_string	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		char *	value,
		size_t	max_len
	)

Read a string from the buffer into a fixed-size buffer.

CDR strings are encoded as: u32 length (including null terminator)

bytes + null terminator.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output buffer for the string.
max_len	Maximum length of the output buffer.

Returns: 0 on success, negative on overflow or truncation.

◆ rclc_cdr_read_u16()

int32_t rclc_cdr_read_u16	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		uint16_t *	value
	)

Read a u16 value from the buffer (with alignment).

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_read_u32()

int32_t rclc_cdr_read_u32	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		uint32_t *	value
	)

Read a u32 value from the buffer (with alignment).

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_read_u64()

int32_t rclc_cdr_read_u64	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		uint64_t *	value
	)

Read a u64 value from the buffer (with alignment).

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_read_u8()

int32_t rclc_cdr_read_u8	(	const uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		uint8_t *	value
	)

Read a u8 value from the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Output: the value read.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_seq_byte_len()

static int32_t rclc_cdr_seq_byte_len	(	uint32_t	count,
		size_t	elem_size,
		size_t	limit,
		size_t *	out
	)

inlinestatic

The byte length of count wire elements of elem_size bytes, or failure if the product does not fit below limit.

count is untrusted — it came off the wire — and on every 32-bit target (size_t)count * elem_size wraps for a count as small as 0x40000000 (issue 1149): the wrapped length passes any bounds check, and the view then reads far past the buffer while reporting success. Call sites pass SIZE_MAX as limit; a test may pass a 32-bit limit to exercise the wrap on a 64-bit host, which is the only way the native lane can see it.

Returns: 0 and *out on success, -1 when count * elem_size > limit.

◆ rclc_cdr_write_bool()

int32_t rclc_cdr_write_bool	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		bool	value
	)

◆ rclc_cdr_write_encaps_header()

int32_t rclc_cdr_write_encaps_header	(	uint8_t **	ptr,
		const uint8_t *	end
	)

Write a boolean value to the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Boolean value to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_f32()

int32_t rclc_cdr_write_f32	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		float	value
	)

Write a f32 value to the buffer (with alignment).

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Value to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_f64()

int32_t rclc_cdr_write_f64	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		double	value
	)

Write a f64 value to the buffer (with alignment).

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Value to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_i16()

int32_t rclc_cdr_write_i16	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		int16_t	value
	)

Write an i16 value to the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Value to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_i32()

int32_t rclc_cdr_write_i32	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		int32_t	value
	)

Write an i32 value to the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Value to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_i64()

int32_t rclc_cdr_write_i64	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		int64_t	value
	)

Write an i64 value to the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Value to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_i8()

int32_t rclc_cdr_write_i8	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		int8_t	value
	)

Write an i8 value to the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Value to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_string()

int32_t rclc_cdr_write_string	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		const char *	value
	)

Write a string to the buffer (length-prefixed).

CDR strings are encoded as: u32 length (including null terminator)

bytes + null terminator.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Null-terminated string to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_string_n()

int32_t rclc_cdr_write_string_n	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		const char *	data,
		size_t	len
	)

Write a string from a pointer+length pair (not null-terminated).

Used by borrowed message types where the string field is a struct { const char* data; size_t size; } rather than a char[].

CDR encoding: u32 length (size + 1 for null) + bytes + null terminator.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
data	String data (may not be null-terminated).
len	String length in bytes (excluding any null terminator).

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_u16()

int32_t rclc_cdr_write_u16	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		uint16_t	value
	)

Write a u16 value to the buffer (with alignment).

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Value to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_u32()

int32_t rclc_cdr_write_u32	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		uint32_t	value
	)

Write a u32 value to the buffer (with alignment).

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Value to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_u64()

int32_t rclc_cdr_write_u64	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		uint64_t	value
	)

Write a u64 value to the buffer (with alignment).

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Value to write.

Returns: 0 on success, negative on overflow.

◆ rclc_cdr_write_u8()

int32_t rclc_cdr_write_u8	(	uint8_t **	ptr,
		const uint8_t *	end,
		const uint8_t *	origin,
		uint8_t	value
	)

Write a u8 value to the buffer.

Parameters

ptr	Pointer to the cursor (advanced on success).
end	Pointer past the end of the buffer.
origin	Buffer origin (for alignment calculations).
value	Value to write.

Returns: 0 on success, negative on overflow.

Functions

Detailed Description

Function Documentation

◆ rclc_cdr_align()

◆ rclc_cdr_begin_dheader()

◆ rclc_cdr_begin_dheader_read()

◆ rclc_cdr_end_dheader()

◆ rclc_cdr_end_dheader_read()

◆ rclc_cdr_read_bool()

◆ rclc_cdr_read_f32()

◆ rclc_cdr_read_f64()

◆ rclc_cdr_read_i16()

◆ rclc_cdr_read_i32()

◆ rclc_cdr_read_i64()

◆ rclc_cdr_read_i8()

◆ rclc_cdr_read_string()

◆ rclc_cdr_read_u16()

◆ rclc_cdr_read_u32()

◆ rclc_cdr_read_u64()

◆ rclc_cdr_read_u8()

◆ rclc_cdr_seq_byte_len()

◆ rclc_cdr_write_bool()

◆ rclc_cdr_write_encaps_header()

◆ rclc_cdr_write_f32()

◆ rclc_cdr_write_f64()

◆ rclc_cdr_write_i16()

◆ rclc_cdr_write_i32()

◆ rclc_cdr_write_i64()

◆ rclc_cdr_write_i8()

◆ rclc_cdr_write_string()

◆ rclc_cdr_write_string_n()

◆ rclc_cdr_write_u16()

◆ rclc_cdr_write_u32()

◆ rclc_cdr_write_u64()

◆ rclc_cdr_write_u8()
