rcl_client_t Struct Reference

#include <nros_generated.h>

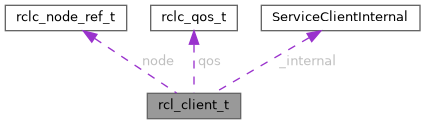

Collaboration diagram for rcl_client_t:

Data Fields
struct ServiceClientInternal	_internal
struct rclc_node_ref_t	node
struct rclc_qos_t	qos
rclc_sched_context_id_t	sched_context_id
uint8_t	service_name [256]
size_t	service_name_len
enum rclc_client_state_t	state
uint8_t	type_hash [128]
size_t	type_hash_len
uint8_t	type_name [256]
size_t	type_name_len

Detailed Description

A service client the executor dispatches (rclc's rcl_client_t).

phase-487 W2 (RFC-0096 D9, the C half): the arena entry owns the client, its reply buffer, the response callback and its context. This struct keeps the arena handle (_internal, with the rclc_client_call timeout) and the description the registration reads. Before W2 the arena entry's callback was a trampoline that read the callback out of THIS struct, a back-reference that made a late reply after rcl_client_fini a use-after-free (issue 1631); the entry now holds the user's callback directly. A client the caller drives itself is a [rclc_polling_client_t].

Field Documentation

_internal

struct ServiceClientInternal rcl_client_t::_internal

Internal state (arena entry index + executor pointer + timeout). Typed C-ABI handle field.

node

struct rclc_node_ref_t rcl_client_t::node

Pointer to parent node

qos

struct rclc_qos_t rcl_client_t::qos

Phase 193.4b — service-client QoS (applied to both request + reply endpoints). Defaults to the services profile (RELIABLE+VOLATILE+KEEP_LAST(10)); set via rclc_client_init_with_qos.

sched_context_id

rclc_sched_context_id_t rcl_client_t::sched_context_id

Phase 189.M3.3.a — scheduling-context slot to bind the client's executor handle to. 0 = inherit the executor / Node default; set via rclc_client_init_with_options. When non-zero, rclc_executor_attach_client binds the freshly-created handle to this SC after registration.

service_name

uint8_t rcl_client_t::service_name[256]

Service name storage

service_name_len

size_t rcl_client_t::service_name_len

Service name length

state

enum rclc_client_state_t rcl_client_t::state

Current state

type_hash

uint8_t rcl_client_t::type_hash[128]

Type hash storage

type_hash_len

size_t rcl_client_t::type_hash_len

Type hash length

type_name

uint8_t rcl_client_t::type_name[256]

Type name storage

type_name_len

size_t rcl_client_t::type_name_len

Type name length

---

The documentation for this struct was generated from the following file:

• include/rclc/detail/nros_generated.h
